6520
Stage IIIA: 4-cylinder Kubota diesel engine, approx. 55.4 kW/75 hp
Stage V: 4-cylinder Kubota diesel engine, approx. 55.4 kW/75 hp
Steel hull with primer and top coat resistant to aggressive, atmospheric and mechanical influences.
Boat corners with double-walled material support as wearing edge
Aluminium pontoons attached to the hull
Fuel tank approx. 130 l
Hydraulic tank approx. 200 l
Blokland Water and Hydraulic Oil Cooling
Two hydraulic drive augers with start-up and weed protection
Drive screws hydraulically tiltable upwards
Hydraulic swivelling of the drive screws by 60° per side
Steering wheel
Hydraulically pilot-controlled manual encoders, travel speed infinitely variable
Clearly arranged controls and monitoring instruments (rev counter and hour meter, temperature display, electric diesel tank indicator, hydraulic oil warning indicator, electric position indicator with transmitter for steering, main battery switch)
12 V socket splash-proof
Splash-proof ignition lock and displays
Upholstered seat with armrests
LS pump for drive up to 100 l/min at 240 bar
Gear pumps for conveyor belts up to 40 l/min at 170 bar
Gear pump for steering and cylinder hydraulics up to 25 l/min at 180 bar
Gear pump for U-cutter up to 25 l/min at 80 bar
Hydraulic oil: Bio-oil Water hazard class 0
Micro filter system
Automatic safety shutdown in case of overheating and low engine oil pressure
Acoustic signal when hydraulic oil level is too low
Hull: 6.00 m x 2.45 m x 1.00 m (LxWxH)
Pontoons: 6.00 m x 0.40 m (LxW)
Transport: 10.50 m x 2.45 m x 2.85 m (LxWxH)
Draught: 0,45 m
Weight: approx. 6,500 kg
Cabin: 1.30 m x 1.50 m x 1.70 m
Front conveyor belt 3.80 m long and 1.90 m wide, unloading height 2.00 m above waterline
Loading conveyor 4.30 m long and 1.90 m wide, loading height 0.60 m
Loading capacity 5.5 m³
made of stainless material with Polystal double rods, pce. 23 mm, ø 8 mm
U-cutterbar with 2.30 m working width and 1.50 m working depth
Double-knife cutter
Up to 7 km/h forward
Up to 4 km/h backwards
Lockable storage box
Lighting and equipment according to EU regulation
mobile bilge pump
Oil change pump for engine oil
Tool kit
Fire extinguisher, First aid kit, Life belt, Life jacket
Clear the water surface of plants (not only for plants on the water surface, also suitable for plants growing underwater.
Remove rubbish from the water surface

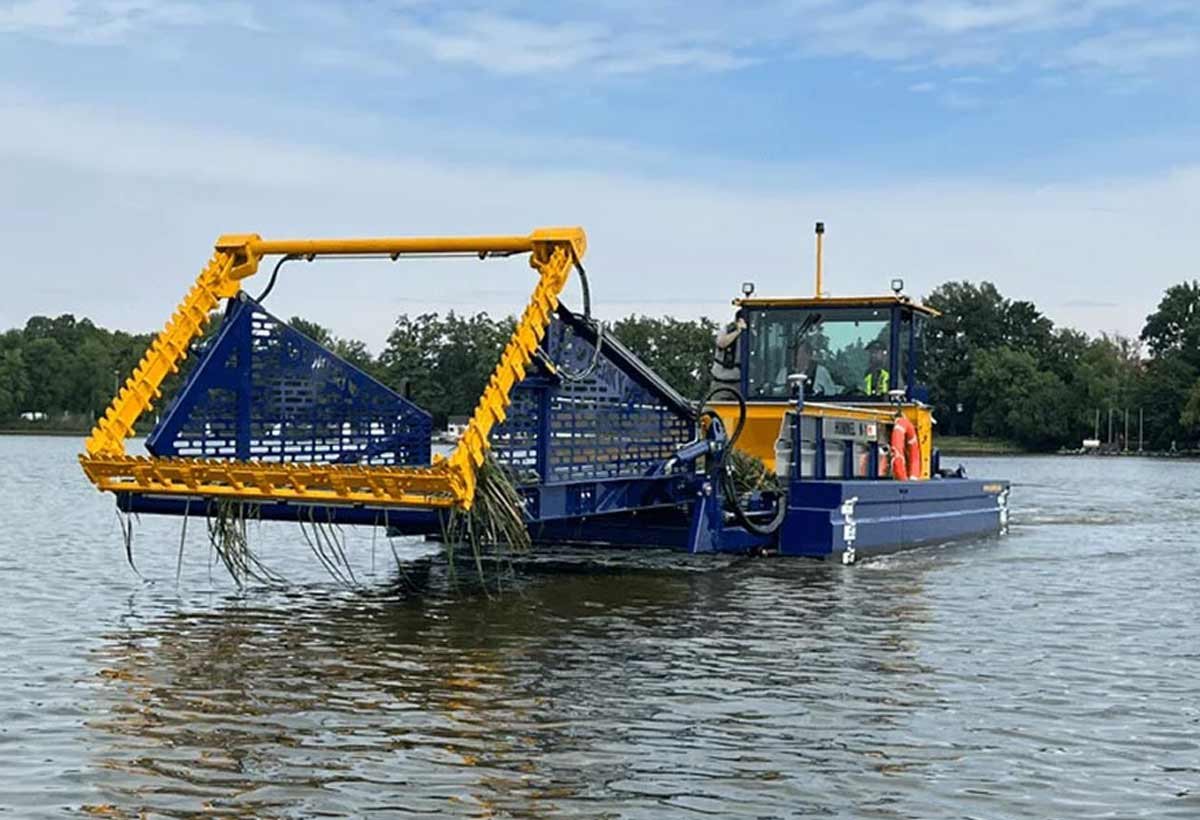

Mowing and collecting in one step. The weed harvester BERKY TRITON 550 is a compact and manoeuvrable mower collection boat that simultaneously cuts aquatic plants below the water surface with a U-double blade cutter and transports them to the loading area by conveyor belt. This boat is ideally suited for larger and wider water areas that need to be targeted and cleared of plants and debris. In addition, this mower-collection boat is also suitable for skimming rubbish from the water surface and can thus be used as a rubbish collection boat. The content of the loading area is 5.5 m^3 and can be unloaded with the conveyor belt within a few minutes.
With this compact and versatile mowing collection boat for purchase or rent, smaller lakes, watercourses or canals can be cleared of water plants and rubbish.
Mowing and collecting in one step. The weed harvester BERKY TRITON 550 is a compact and manoeuvrable mower collection boat that simultaneously cuts aquatic plants below the water surface with a U-double blade cutter and transports them to the loading area by conveyor belt. This boat is ideally suited for larger and wider water areas that need to be targeted and cleared of plants and debris. In addition, this mower-collection boat is also suitable for skimming rubbish from the water surface and can thus be used as a rubbish collection boat. The content of the loading area is 5.5 m^3 and can be unloaded with the conveyor belt within a few minutes.
With this compact and versatile mowing collection boat for purchase or rent, smaller lakes, watercourses or canals can be cleared of water plants and rubbish.
