6450
Stage IIIA/Stage V: 6-cylinder Perkins diesel engine, approx. 186 kW/252 hp
Steel hull with primer and top coat resistant to aggressive, atmospheric and mechanical influences.
Boat corners with double-walled material support as wearing edge
Running floor made of non-slip aluminium chequer plate
Fuel tank approx. 1,200 l
Hydraulic tank approx. 500 l
Water cooling
Two hydraulic drive augers with start-up and weed protection
Drive screws hydraulically tiltable upwards
Hydraulic swivelling of the drive augers via joystick on the driver's seat
two electric joysticks for boom (Euro control)
one joystick for worm drive, travel speed infinitely variable
Switching of different cylinder functions via PLC
Steel cabin fully glazed, with roof hatch, FOPS tested
Clearly arranged controls and monitoring instruments (rev counter and hour meter, temperature display, depth under, hydraulic oil warning indicator, electrical position indicator with transducer for steering, main battery switch)
12 V socket splash-proof
Splash-proof ignition lock and displays
Comfort seat for driver and passenger
Air conditioning, heating, radio
Working lights front and rear
L/S pump for drive and slurry pump up to 260 l/min at 280 bar
L/S pump for booms and supports up to 150 l/min at 280 bar
Gear pump for sludge cutter up to 65 l/min at 250 bar
Hydraulic oil: Bio-oil Water hazard class 0
Automatic safety shutdown in case of overheating and low engine oil pressure
Acoustic signal when hydraulic oil level is too low
Two-part articulated boom mounted centrally
Swivel range up to 350° (with rigid mud pipe up to 120°)
Length approx. 7.50 m
Working depth up to approx. 5.50 m with backhoe bucket
Working depth up to approx. 6.50 m with cutting head
Two front supports hydr. swivelling by 115° and telescopic up to 6.00 m length
Two rear supports hydr. tiltable and infinitely adjustable up to 6.70 m depth
Stationary 8/6" pump below deck
Delivery rate up to approx. 770 m³/h
Hull: 10.50 m x 3.00 m x 1.20m (LxWxH)
Pontoons: 5.50 m x 1.00 m (LxW)
Transport: 15.50 m x 3.00 m x 3.00 m (LxWxH)
Draught: 0,60 m
Weight: approx. 22,500 kg
Cabin: 1.90 m x 1.60 m x 1.60 m
Up to 8 km/h forward
Up to 5 km/h backwards
Lighting and equipment according to EU regulation
mobile bilge pump
Tool kit
Fire extinguisher, First aid kit, Life belt, Life jacket
Suck out or pump out sediments
Desilting of lakes or waterways
Removal of gravel, sand or soil in the shore area
Clean overgrown and silted ditches

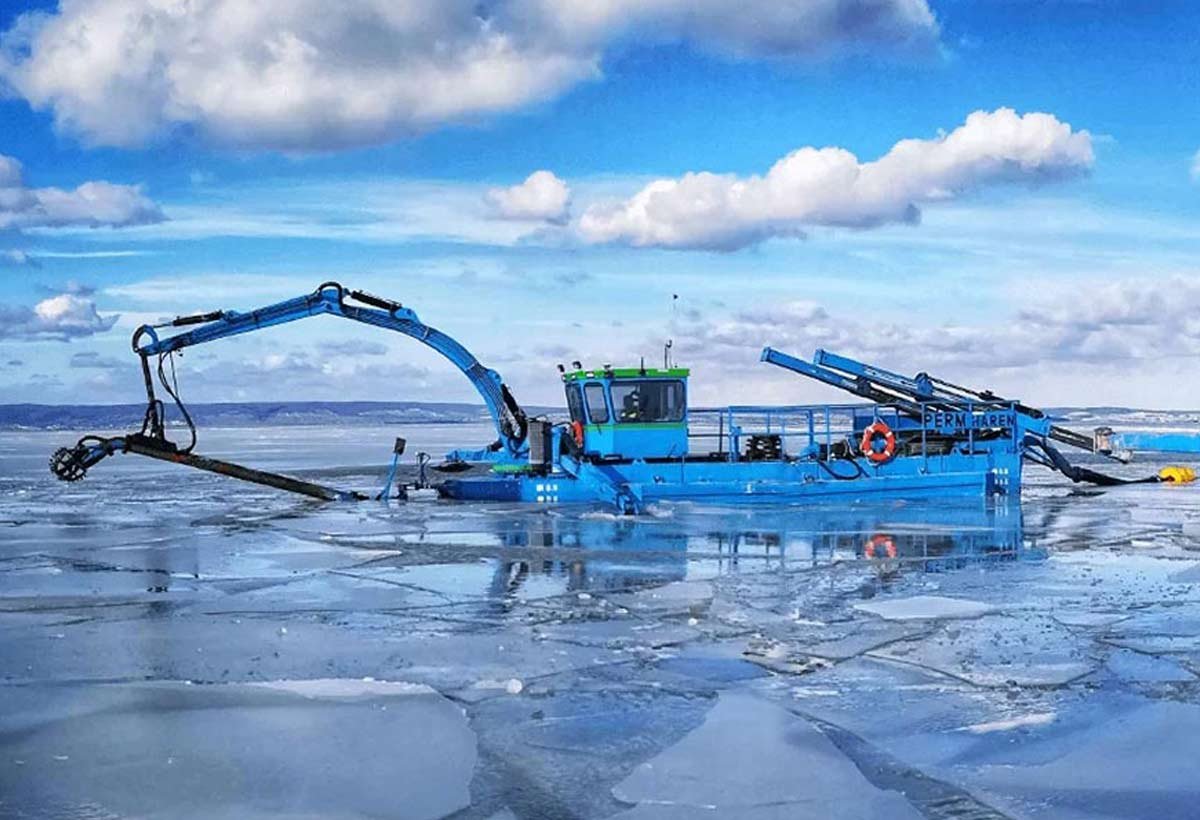

The BERKY POSEIDON 770 is the largest desludging boat and multifunctional for suction and dredging work. Four hydraulic supports provide the dredger with a high degree of stability during work.
Due to the optimal use of the supports, the desludging boat can load itself, so that no crane unit is necessary. This simplifies loading and unloading, as well as launching the Dredge King. Even short distances can be covered on land thanks to the construction of the dredge.
With the desilting boat BERKY POSEIDON 770 you can realise larger projects and jobs with a small expenditure of time. Rent or buy our large dredge to clear waterways, ponds or lakes of mud or sediment in the shortest possible time.
The BERKY POSEIDON 770 is the largest desludging boat and multifunctional for suction and dredging work. Four hydraulic supports provide the dredger with a high degree of stability during work.
Due to the optimal use of the supports, the desludging boat can load itself, so that no crane unit is necessary. This simplifies loading and unloading, as well as launching the Dredge King. Even short distances can be covered on land thanks to the construction of the dredge.
With the desilting boat BERKY POSEIDON 770 you can realise larger projects and jobs with a small expenditure of time. Rent or buy our large dredge to clear waterways, ponds or lakes of mud or sediment in the shortest possible time.
