Accessories

Face shovels and hoe-type buckets

Fields of application
- Typical civil engineering applications with medium to high break-out forces
- Digging and loading of loosened material
Features:
- Welded tooth holders
- Generously dimensioned cutting tooth thickness
- Back reinforcements of wear-resistant material
- Bucket form tapered to the rear
- Cutting widths from 400 to 1000 mm
- Bucket capacities from 120 to 550 l
- Rock version, material of Hardox and Weldox
- ESCO V19 teeth

Benefits:
- Buckets are optimally matched to the excavator types
- Versatile in application
- Good penetration behavior
- Easy emptying of the bucket

Ditching bucket, fixed

Fields of application:
- General civil engineering
- Trench digging
- Loading operations
Features:
- Welded cutting blade
- Back reinforcements of wear-resistant material
- Rigid, without teeth
- Cutting widths from 1200 to 1350 mm
- Bucket capacities from 265 to 645 l
- Material of Hardox and Weldox

Benefits:
- Effective working
- Simple leveling of surfaces

Stone pickup bucket

Fields of application
-- Handling of solid goods
- Excavation work
- Special digging operations
- Shifting of rocks
- Picking up tree trunks
Features:
- Optimally matched to the machine size
- Rigid mounting for multifunctional applications
- Sturdy construction
- Protected location of the cylinders
- Semi-open side shells with ribbed contour
- Cutting width 650 mm
- Bucket capacity 250 l
- 360° endless rotation
- Maximum opening width 1950 mm
- Teeth: ESCO V19, 5 teeth
- Shut-off valves in the hydraulic cylinders

Benefits:
- Precise and reliable positioning of goods of all kinds thanks to maneuverability and high bucket closing force
- Multifunctional use due to the rigid mounting

Universal grapple bucket

Fields of application
- Loading, unloading and trans-shipment of various bulk materials
- Excavation operations
- Special digging operations
- Shifting of rocks
Features:
- 360° endless rotation
- Optimally matched to the machine size
- Rigid mounting for multifunctional applications
- Sturdy construction
- Protected location of the cylinders
- Closed side shells with ribbed contour
- Cutting width 660 mm
- Bucket capacity 250 l
- 360° continuous rotation
- Maximum opening width 1950 mm
- Teeth: ESCO V19, 5 teeth
- Shut-off valves in the hydraulic cylinders

Benefits:
- Precise and reliable positioning of goods of all kinds thanks to maneuverability and high bucket closing force
- Multifunctional use due to the rigid mounting

Blitz quick-changer

Technical benefits:
- The right tool in use at all times
- No loosening of bolts, nuts and cotter pins
- Long service life thanks to positive contact system
- Designed for heavy-duty operation
Comfort benefits:
- Easy retrofitting on existing KAISER excavators
- Low operating and maintenance costs
- Changing of the attachments from the cab

Economic benefits:
- Changing of the attachments within seconds – hence increased machine utilization through varying use of the same machine
- Optimum attachment for every application

Rotor

Fields of application
- General civil engineering
- Trench digging
- Gallery construction
Features:
- 2x70° slewing angle
- Sturdy design

Benefits:
- Extended range of applications of the excavator
- High precision thanks to easy handling

Winch

Fields of application
- General civil engineering
- Trench digging
- Gallery construction
Features:
- Available as shifting and mooring winch
- 6 to pulling force
- Multiple disc brake with anti-lowering valve
- Overload protection
- Suitable for one-man installation (hook for attachment)
- Actuation from joystick (tightening and releasing)
- Compacted rope diameter 14 mm with 80 m length

Benefits:
- Extended range of applications of the excavator
- Simple, sturdy construction

Demolition hammer

Fields of application
- Civil engineering
- Underground mining work
- Trench digging
- Gallery construction
Features:
- Sizes from SB 300 to SB 450
- Impact energy from 610 to 800 Joule
- Chisel diameter 80 to 95 mm

Benefits:
- High impact energy and stability

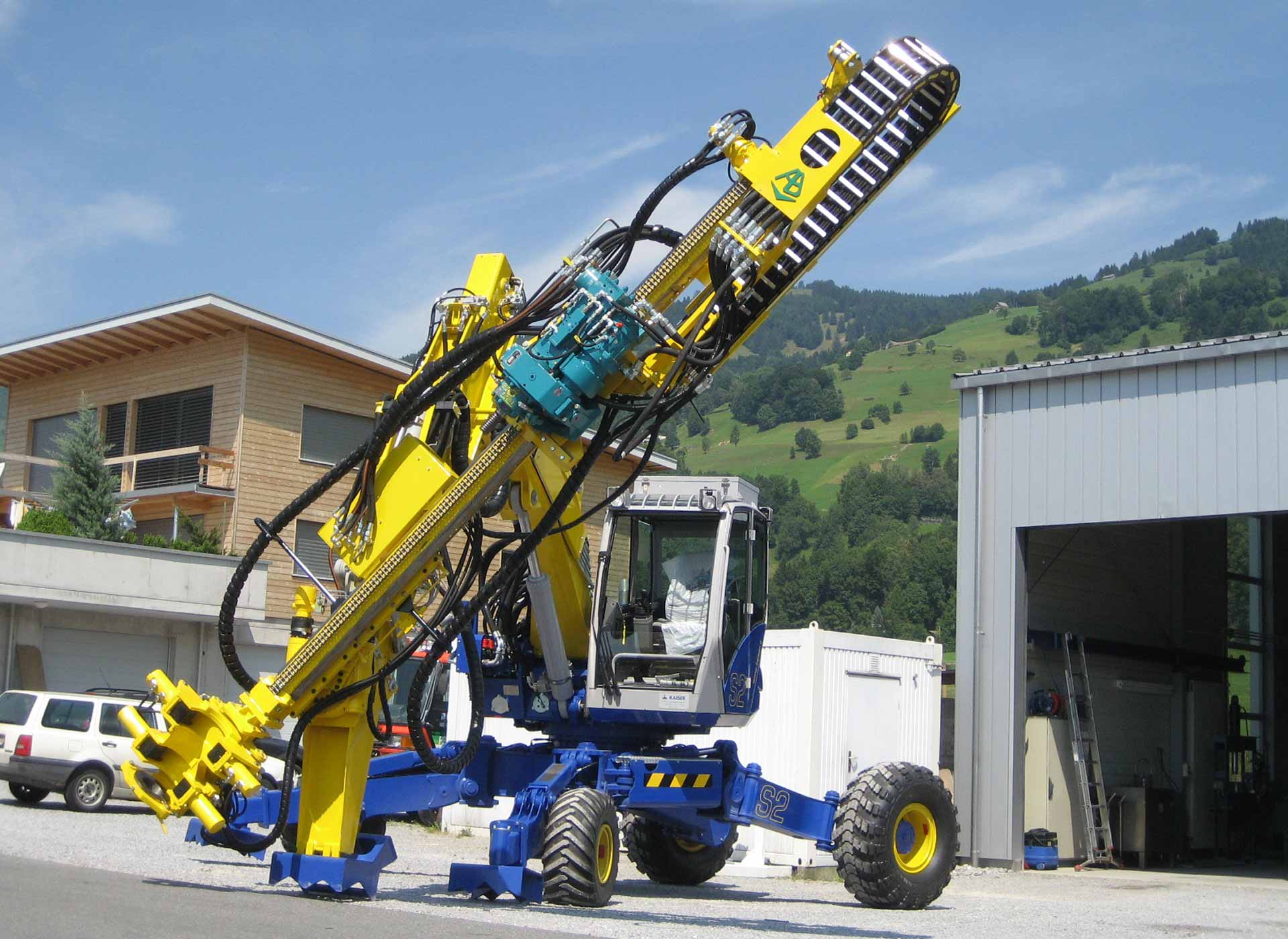

Drill rig

Fields of application
- Civil engineering
- Underground mining work
- Trench digging
- Gallery construction
Features:
- Blast hole drilling
- In-hole drilling
- Separate air/water flushing device
- Radio remote control

Benefits:
- All from a single source
- Optimally balanced process
We will be happy to give you further information on our complete range of accessories: sales(at)kaiser.li
